In-house Deep Drawing Molds
Stable cavity shape and consistent dimensions.
Multiple Cavity Layouts
From 8 to 30+ indents available.
High Strength & No Deformation
Designed for industrial baking lines.
Custom Development Supported
New cavity size and layout can be developed.
Engineered Cavities & Precise Dimensions
Each cavity is formed by deep drawing molds to ensure uniform diameter, depth, and spacing.
Overall size, cavity diameter, depth, and center-to-center distance can be customized based on your production requirements.

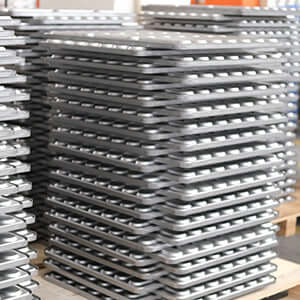

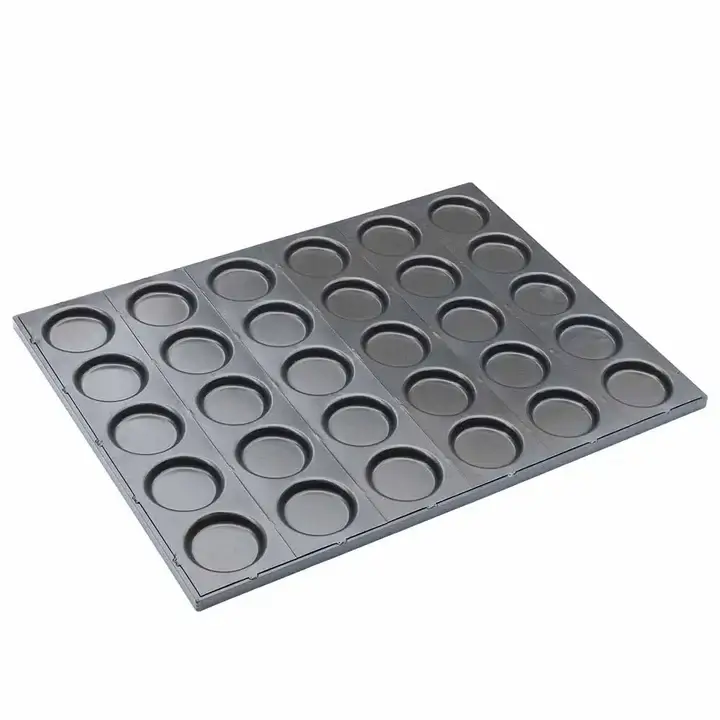

We already manufacture hamburger bun pans in various standard sizes and layouts, including 40x60cm, 46x66cm, 60x80cm, 73.8x50.3cm, and other non-standard formats.
Existing molds help shorten lead time, while new tooling can be developed if required.
| Type | Overall Size | Single Indent | Single Indent | Single Indent | Single Indent |
|---|---|---|---|---|---|
| Hamburger bun pan | 60x80cm | 10cm | 12cm | 14cm | 17cm |
| Hamburger bun pan | 40x60cm | 7.62cm | 10.2cm | 10.8cm | 12.5cm |
| Hamburger bun pan | 73.8x50.3cm | 10.3cm | 11.43cm | / | / |

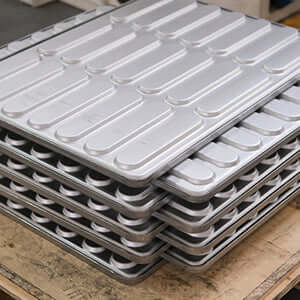

| Hot dog pan | 60x80cm | 18x5.5cm | 18.5x5.5cm | 17.5x5.4cm | 25x6cm |

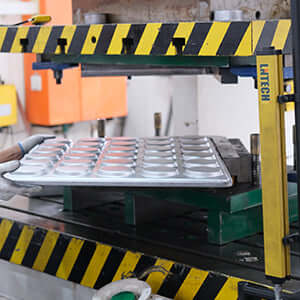

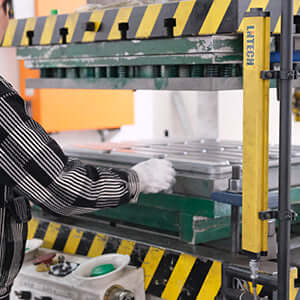

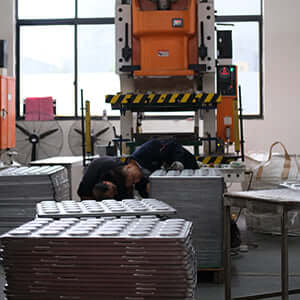

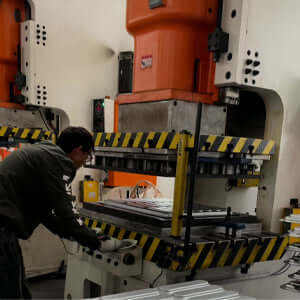

Manufactured with Our Own Tooling & Equipment

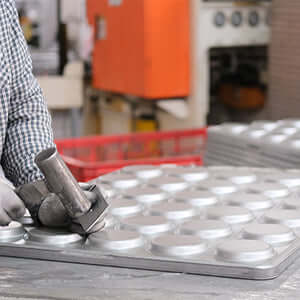

From mold machining to deep drawing and finishing, all processes are completed in our factory, ensuring consistency, durability, and reliable delivery.
Develop Your Own Hamburger Pan with Us
Send us your cavity size, layout, or drawings. Our engineering team will support tooling and production.
